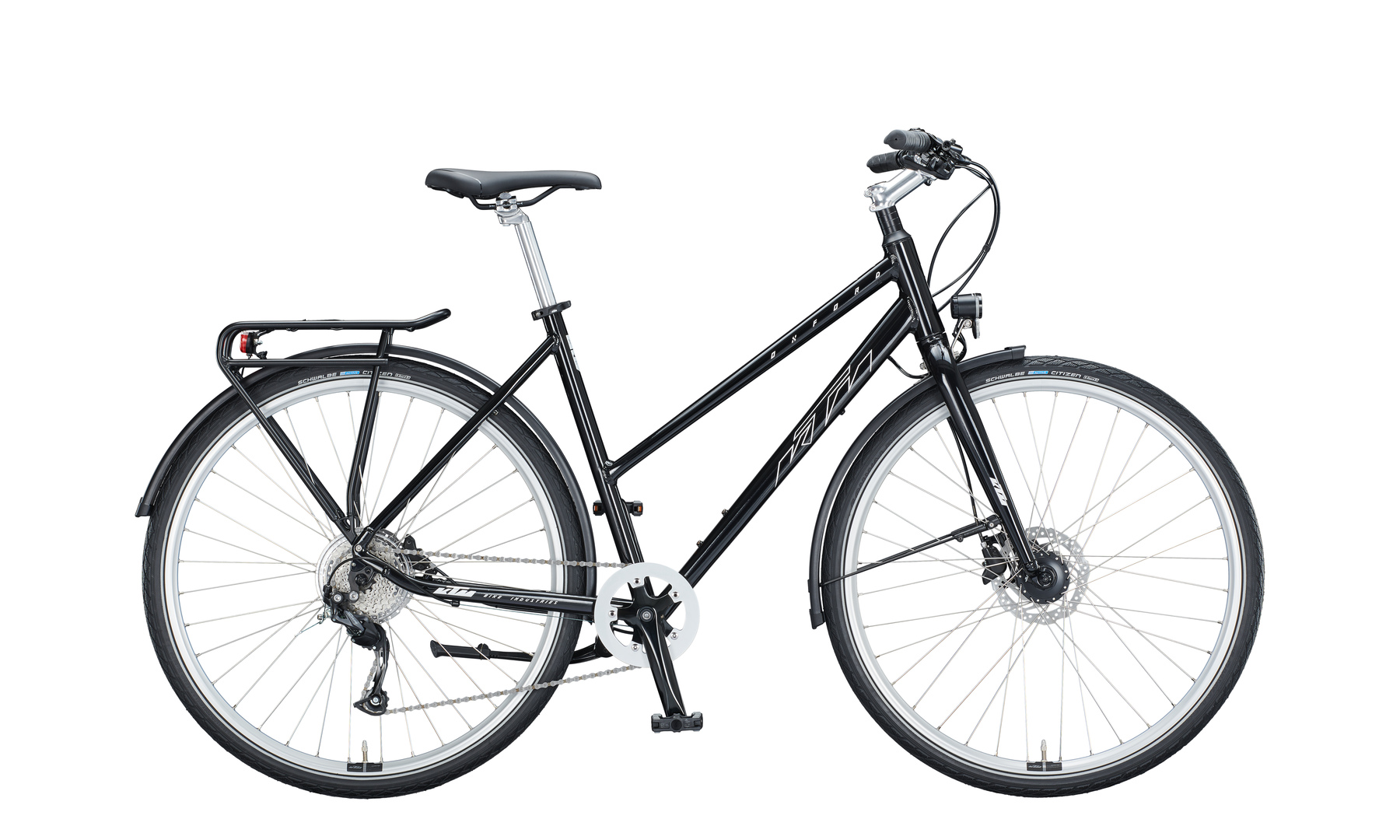

YOUR CITY. YOUR BIKE. Are you ready for your urban adventure? More than half of the world's population has settled in cities, but as the population grows, so does the chaos on the city roads. To battle this, more cyclists are taking to the road to skip the traffic jams and make the cities theirs! The bicycle has become a status symbol for the urban citizen. Urban Bikes are not only well known for their suitability and reliability in all conditions, but they also crown their functionality with a sleek and elegant design that catches the eye of commuters. KENT, OXFORD, CITY and TOURELLA are the names of our townsfolk. Just pick your favourite.

Specification

Specification

FRAME 28" Alloy 6061 URBAN T8620
FORK Rigid alloy 28"
R. DERAILL. Shimano Altus M2000 SGS
SHIFTLEV. Shimano Altus SL-M2019
CRANKSET Lasco FR650 38
SPROCKET Shimano HG201-9 / 11-32
CHAIN Shimano HG53
BRAKE Shimano RT10 CL 160
ROTOR Shimano RT10 CL 160 / 160
WHEEL F KTM Line - Shimano 36H DH3D37 CL QR / REMERX TOP DISC 36H 622x19 / RM 2.0 INOX, silver
WHEEL R KTM Line - Shimano FH-TX505 36H CL QR / REMERX TOP DISC 36H 622x19 / RM 2.0 INOX, silver
TIRE F Schwalbe CITIZEN K-Guard 42-622
TIRE R Schwalbe CITIZEN K-Guard 42-622
GRIP VELO VLG-1349
BAR Black Line Riser17 630mm
STEM BLACK Line 7°
HEADSET Ritchey Zero Logic PRESS FIT, 1-1/8"", H:9.4mm
SADDLE KTM Line Urban
SEATPOST Black Line 27.2
PEDAL KTM Onroad VPE-857 EPB
CARRIER KTM Racktime light (snap-it 1.0+2.0)
LIGHT F Trelock BIKE-i VEO LS 233 LED
LIGHT R Trelock DUO FLAT
FENDER SKS A46R silver alloy
KICKSTAND KTM Center 24"-28" adjust
WEIGHT 14,0kg
PERMISSIBLE TOTAL WEIGHT 132kg

Geometry

A Size 51cm
B Seattube length 510
C Toptube length 586
D Seat angle 73
E Head angle 71
F Headtube length 155
G Chainstay length 445
H Wheelbase 1073
I Stack
J Reach
K Standover height 796
L BB drop 60
A Size 56cm
B Seattube length 560
C Toptube length 597
D Seat angle 73
E Head angle 71
F Headtube length 174
G Chainstay length 445
H Wheelbase 1096
I Stack
J Reach
K Standover height 827
L BB drop 60
A Size 60cm
B Seattube length 600
C Toptube length 612
D Seat angle 73
E Head angle 71
F Headtube length 190
G Chainstay length 445
H Wheelbase 1114
I Stack
J Reach
K Standover height 852
L BB drop 60
